Pre-Shredder PSE
Pre-shredder SIMVIC PSE
Pre-shredder PSE Double shaft scrap shredders. Power, efficiency and solid construction are special features. The machine can work as a standalone unit or as part of a scrap recycling line.
More powerful
All electrical power
Special electrical motor and reducer system
Can change power automatic
Output power can 1.5-2times than motor power
Productivity
Special teeth construction suitable for all scrap types
Different speed between shafts to optimize scrap shredding
Easier material gripping via articulated ram
Maintenance
Low cost maintenance than hydraulic motor
Upper case can open by hydraulic cylinder
Automatic lubrication shaft bearings
Easily change shaft teeth and maintaince
Advantages
Reduce the explosions in the shredder
Detect the unshreddable material
Improve shredder production, reduce shredding time
Increase service life of wear parts of shredder
Smooth on shredder electric consumption
Working process

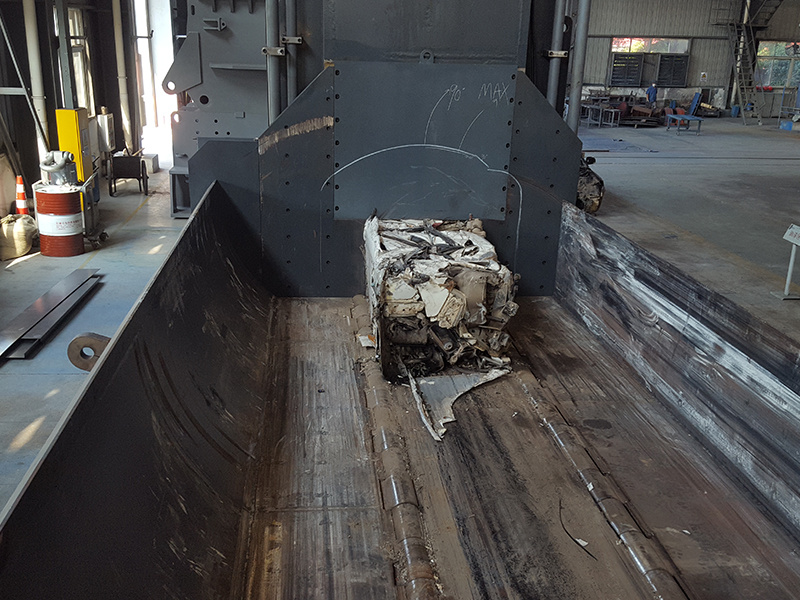

Inclined hopper feed
Easier material gripping via articulated ram
High and adjustable torque
Separate adjustable shaft rotation speed
Independent shaft electric drive system
Specification
| Type | Unit | PSE-500(600) | PSE-700 | PSE-900 |
| Feeding Width | mm | 2300 | 2500 | 2500 |
| Discs/teeth per disc(bottom) | Pieces | 4(5)/10 | 4(5)/10 | 4(5)/10 |
| Diameter teeth(top/bottom) | mm | 1600(1600) | 1700(1700) | 1800(1800) |
| Shaft rotating speed(top/bottom) | rpm | 2.5-3.5/8-12 | 2.5-3.5/8-12 | 2.5-3.5/8-12 |
| Main motor | KW | 292(360) | 440 | 584 |
| Capacity | T/h | 10-25 | 30-40 | 40-60 |
Option
Heavy apron conveyor
Metal platform(support frame)

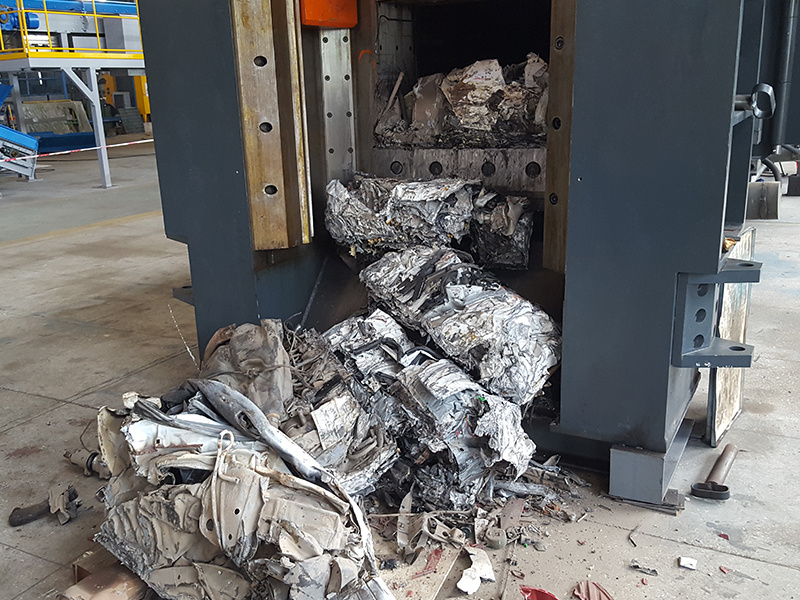

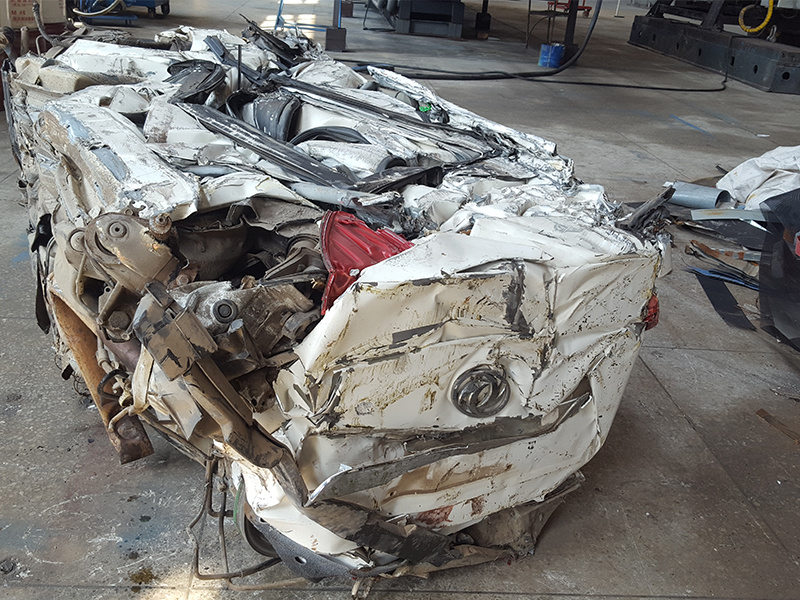

Application Cases
